UNPARALLELED LTD yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm precision dawb ceramic hauv Suav teb. Nrog kev paub ntau, peb zoo siab tos txais koj mus yuav cov khoom lag luam zoo siab dawb ceramic ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Peb kuj lees txais kev txiav txim.
Product Overview
Hauv kev nrhiav tsis tu ncua ntawm ultra-precision, rotary systems-xws li cov uas pom nyob rau hauv cov khoom siv semiconductor siab heev, cov khoom siv tshuaj ntsuam xyuas qhov muag (AOI), thiab cov cuab yeej ntsuas tshwj xeeb-xav tau lub hauv paus tseem ceeb uas muaj qhov tshwj xeeb nruj, geometric fidelity, thiab superior thermal stability.

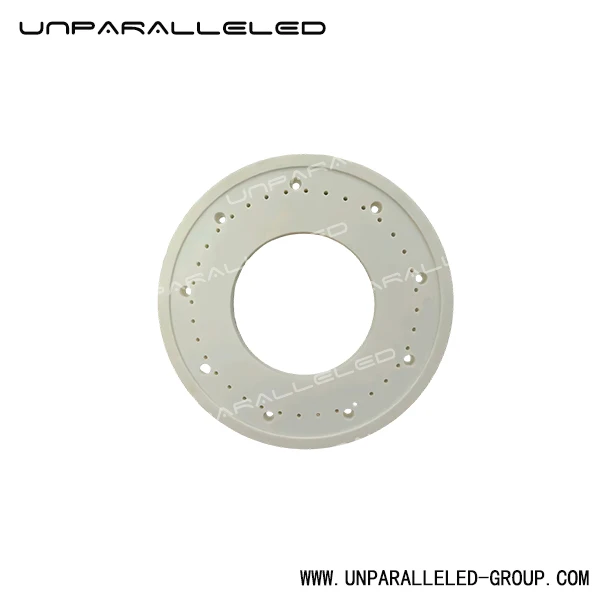

Lub UNPARALLELED® Annular Phaj (raws li daim duab) yog ib qho tshwj xeeb precision tivthaiv, meticulously tsim rau cov ntawv thov uas yuav tsum tau siab -ceev, tsis muaj kev sib txhuam, xws li kev koom ua ke rau hauv granite pa bearing systems los yog raws li ib tug precision theem rau wafer ua thiab laser npav. Thaum UNPARALLELED Group muaj npe nrov rau nws UNPARALLELED® Dub Granite, cov khoom tshwj xeeb no feem ntau yog tsim los ntawm siab - ntom, qis-porosity dawb ceramic lossis lub teeb tshwj xeeb- xim sib xyaw / granite kom tau raws li cov neeg siv khoom tshwj xeeb hais txog purity, xim xim, lossis qhov hnyav txwv. Txawm hais tias cov khoom siv tiag tiag (precision ceramic lossis granite derivative), nws lub hom phiaj tseem zoo ib yam: xa cov khoom tsis sib xws, ntev - lub sijhawm raug.
kev tswj kom zoo
Product Advantages & Core Features
1. Superior Geometric Accuracy (Flatness & Parallelism)
Lub ntsiab feature ntawm no annular phaj yog nws geometric zoo meej. Sab saum toj thiab hauv qab lub ntsej muag yog lapped thiab polished kom ua tiav nanometer precision hauv flatness thiab parallelism. Qhov tseeb qhov tseeb no tsis yog - sib tham tau, raws li kev sib txawv ncaj qha los ua haujlwm - tawm qhov tsis raug lossis qhov sib txawv ntawm huab cua sib txawv hauv lub tshuab teb. Cov khoom no muab cov ntaub ntawv pov thawj, ultra- ruaj khov granite ntsuas tus pas sib npaug rau qhov ntsuas kev sib hloov.
2. Exceptional txhav thiab damping
Engineered siv cov ntaub ntawv nrog lub siab Elastic Modulus (txawm hais tias peb siab -} ntom granite los yog siab precision ceramic), cov khoom tiv thaiv deformation nyob rau hauv kev ua haujlwm siab loads. Nws qhov loj thiab qhov ntom ntom (≈ 3100 kg / m³ rau peb lub hauv paus granite) kom muaj kev sib cais zoo thiab kev vibration damping, tseem ceeb heev rau kev txo qis jitter thaum lub sij hawm siab -kev sib hloov ceev lossis indexing. Qhov kev ruaj ntseg no yog qhov yuav tsum tau ua rau kev sib koom ua ke nrog linear motor platforms lossis XY cov rooj uas qhov kev sib hloov qhov tseeb yog qhov tseem ceeb.
3. Thermal thiab Environmental Stability
Qhov tsis tshua muaj coefficient ntawm thermal expansion ntawm peb cov ntaub ntawv xaiv los xyuas kom meej tias cov phaj tuav nws qhov kev ruaj ntseg txawm tias qhov kub hloov pauv me me. Tsim nyob rau hauv peb 10,000 m² qhov kub thiab av noo Rhiav, cov khoom yog pre-conditioned rau ib puag ncig yuav tsum tau sophisticated femtosecond/picosecond laser khoom thiab lithography systems.
4. Custom Air Bearing Ready Features
Lub precision- tshuab qhov yog qhov tseem ceeb rau nws txoj haujlwm, tsim los rau:
Huab cua-Cov Kabmob Pockets: Ua tib zoo tswj qhov ntiav ntiav kom tsim tau cov yeeb yaj kiab cua kom tsis muaj kev sib txhuam.
Nqus Clamping: Chaw nres nkoj rau kev ruaj ntseg wafers, optical ntsiab, los yog lwm yam rhiab payloads.
Los ntawm -Qhov: Precision bores rau lub cev muaj zog ncej, encoder mounting, los yog cabling nkag.
Hoobkas zaub
Cov cheeb tsam thov tseem ceeb
No UNPARALLELED® Annular Phaj yog lub hauv paus ntseeg hauv lub ntiaj teb cov tshuab xav tau tshaj plaws:
- Semiconductor Processing: Wafer soj ntsuam theem, qauv, thiab precision CNC machining ntawm cov khoom tseem ceeb.
- Metrology & Inspection: Siab -kev daws teeb meem theem rau CMM cov cuab yeej, ntsuas contour, thiab cov cuab yeej kho qhov muag (AOI).
- Precision Optics: Lub hauv paus rau kev sib dhos thiab kuaj cov khoom siv kho qhov muag zoo tshaj plaws thiab cov iav iav sib dhos.
- Siab-Kev Tsim Kev Ceev: Cov khoom siv tseem ceeb hauv PCB drilling tshuab thiab cov cuab yeej tshwj xeeb rau Kev Ntsuas Hluav Taws Xob Lithium roj teeb tshiab.
|
KHOOM |
TSIS MUAJ |
KHOOM |
Al2O3 |
|
APPLICATION |
CMM, Semiconductor, Laser, AEROSPACE ... |
DENSITY |
3800kg / m3 |
|
TXOJ CAI |
TSHIAB CUSTOM |
COLOR |
Dawb |
|
LUB TSEV |
Jinan, Suav teb |
TSHIAB |
1 μm los yog siab dua |
|
WARRANTY |
1 XYOO |
STANDARD |
DIN, GB, ASME, JIS... |
|
Ntim |
Custom Export Pob |
CERTIFICATE |
ISO9001, CE... |
|
NYIAJ NYIAJ |
T/T, L/C |
KEEB THAWJ XEEB |
Precision Dawb Ceramic |
|
KHOOM PLIG |
Jinan nroog, Suav teb |
TECHNICAL SUPPORT |
Inpsection & Calibration & Assembly |
|
PRICE |
EXW, FOB, CIF, DAP, CPT ... |
Kev Pabcuam |
Tsim cov duab kos |
Manufacturing thiab Quality Assurance
Lub creation ntawm no precision tivthaiv embodies lub UNPARALLELED pab pawg neeg ethos: "Txhawb txoj kev loj hlob ntawm ultra{0}}precision kev lag luam."
Txhua lub phaj yog nyob rau hauv kev lag luam- cov txheej txheem tswj kom zoo:
- Advanced Lapping: Siv cov cuab yeej ntse, suav nrog peb lub peev xwm loj - Taiwan Nan -Teh ultra- cov tshuab sib tsoo loj, kom ua tiav qhov kev ntxhov siab- dawb, zoo meej geometry.
- Metrological Verification: Precision raug txheeb xyuas siv lub ntiaj teb cov cuab yeej siv siab tshaj plaws, suav nrog British Reinshaw Laser Interferometer thiab Swiss WYLER Electronic Level, kom ntseeg tau tias kev taug qab mus rau cov qauv hauv tebchaws. Peb sawv ntawm peb txoj kev ntseeg: "Yog tias koj ntsuas tsis tau, koj tsim tsis tau nws."
- Certified Excellence: Peb qhov kev cog lus rau kev ua tau zoo yog pov thawj los ntawm peb cov xwm txheej uas yog tib lub tuam txhab hauv kev lag luam no los tuav ib txhij ISO 9001, ISO 45001, ISO 14001, thiab CE daim ntawv pov thawj.
kev pabcuam
FAQ
Cov khoom siv dab tsi yog Annular Plate feem ntau ua los ntawm, thiab vim li cas?
+
-
Nws feem ntau yog tsim los ntawm siab - ntom ntom ntom ceramic lossis UNPARALLELED® Dub Granite (≈ 3100 kg / m³). Qhov no ua kom zoo tshaj qhov ntev - lub sij hawm raug stability, siab Elastic Modulus (nruj), thiab zoo heev kev co damping, uas yog ib qho tseem ceeb rau nanometer precision rotary systems xws li granite pa bearings.
Lub nanometer precision ntawm huab cua -cov hnab ris thiab lub qhov txuas tau lav li cas?
+
-
Tag nrho cov nta tau txheeb xyuas nyob rau hauv peb qhov kev ntsuas kub thiab av noo tas li siv cov ntsuas ntsuas siab tshaj plaws (xws li Mahr dial indicators thiab Reinshaw Laser Interferometers). Qhov tseeb ntawm cov yam ntxwv no yog tuav rau tib lub zog tolerances raws li cov saum toj kawg nkaus granite ntsuas tus pas ntsuas saum npoo, kom ntseeg tau qhov zoo sib xws rau cov khoom siv semiconductor thiab precision CNC machining daim ntaub ntawv.
Dab tsi yog qhov txiaj ntsig tseem ceeb ntawm cov khoom siv no tshaj li ib txwm hlau puag?
+
-
Lub ntsiab kom zoo dua yog superior stability: peb cov ntaub ntawv muaj ib tug ntau dua thermal expansion coefficient thiab siab nyob rau hauv damping dua hlau. Qhov no tshem tawm thermal drift thiab absorbs dynamic loads sai dua, muab ib tug ruaj khov siv dav hlau rau ultra-precision systems xws li CMM khoom thiab precision laser khoom.
daim ntawv pov thawj
Kev tu thiab tu kom muaj kev ruaj ntseg
Txhawm rau ua kom lub sijhawm ntev - ruaj khov ntawm koj UNPARALLELED® Annular Plate, ua raws li cov lus qhia no:
- Khaws ib puag ncig huv: Ib txwm ua lub phaj hauv nws chav huv huv lossis - thaj tsam qis. Cov plua plav, cov khib nyiab, thiab cov khoom paug tuaj yeem khawb qhov chaw lossis cuam tshuam rau huab cua - kev ua haujlwm tau zoo.
- Tsis txhob cuam tshuam: Txawm hais tias cov khoom siv nruj heev, kev cuam tshuam hnyav los yog tso cov khoom txawv teb chaws tuaj yeem ua rau chipping lossis khawb, cuam tshuam qhov tseeb ntawm geometric.
- Kev Tu Tsis tu ncua: Siv tsuas yog pom zoo, tsis yog -abrasive granite/ceramic cleaners thiab lint-dawb ntaub. Tsis txhob siv cov tshuaj ntxuav tes uas tuaj yeem nkag mus rau hauv cov khoom lossis tawm ntawm qhov seem.
- Teem caij Recalibration: Thaum peb cov khoom muaj qhov tshwj xeeb Accuracy Lifespan, peb pom zoo kom muaj kev txheeb xyuas raws sij hawm ntawm flatness thiab parallelism siv cov cuab yeej ntsuas ntsuas, tshwj xeeb hauv kev siv nanometer precision daim ntawv thov.
Los ntawm kev xaiv qhov UNPARALLELED® tivthaiv no, koj koom tes nrog cov chaw tsim khoom lag luam paub thoob ntiaj teb rau kev ua tau zoo, kev ntseeg siab, thiab peb cov lus cog tseg tsis tu ncua: "Tsis muaj kev dag, Tsis zais, tsis muaj kev dag ntxias."
